Overview

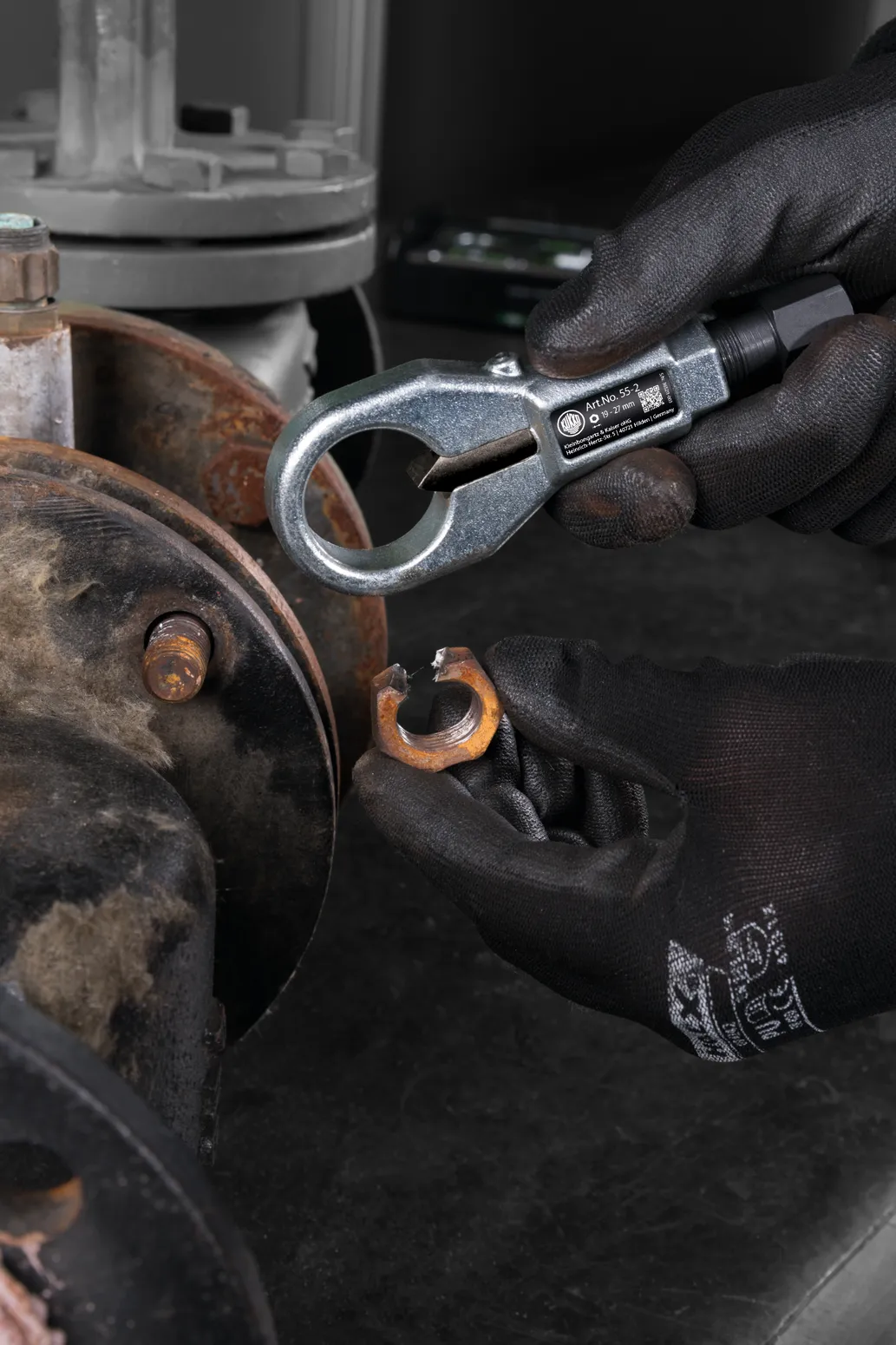

The single-edged, mechanical nut splitter is used for splitting tight, rusted or overtightened grade 6 nuts. The threaded pin remains undamaged during this blasting process. The sharp bevelled edge of the chisel penetrates deep into the nut when the spindle is tightened until it is blasted. The single-edged nut splitter is the right choice in confined spaces where there is little room around the nut.
Application
For blasting stuck, rusted or over-tightened grade 6 nuts
Benefits
The nut can be blasted without damaging the threaded bolt
Pullback Technology guarantees easy turning back of the chisel from the cracked nut
Also suitable for use in pipework construction and other industries
Specifications
Total width: 24mm
Total depth: 13mm
Net weight: 0.1kg
Width across flats: 14mm
Case material: Tool steel
Total length: 70mm
Width across flats of the nut (min): 4mm
Width across flats of the nut (max): 10mm
Chisel cutting width: 8mm
Length from spindle head to contact surface: 65mm
Thread size of the nut: M1, M1,2, M1,4, M1,7, M2, M2,5, M3, M3,5, M4, M5, M6
Width across flats of the nut: 2,5, 3, 3, 3,2, 4, 5, 5,5, 6, 7, 8, 10
Width across flats of the nut (ISO): 2,5, 3, 3, 3,2, 4, 5, 5,5, 6, 7, 8, 10
